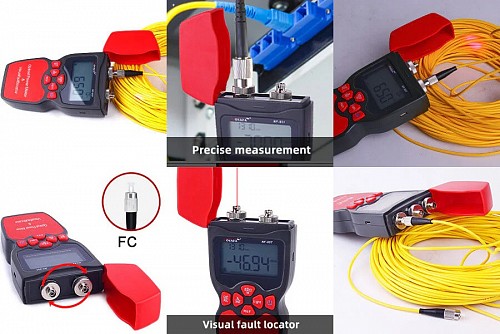

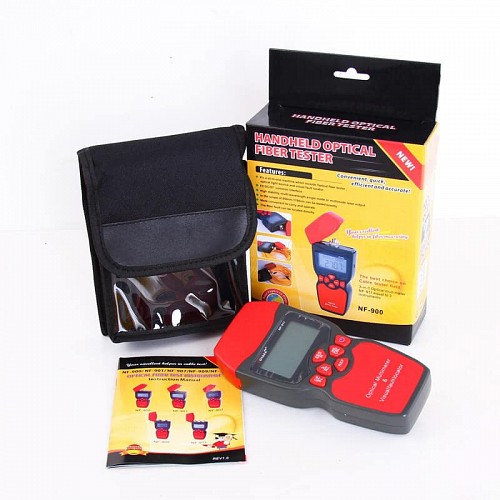

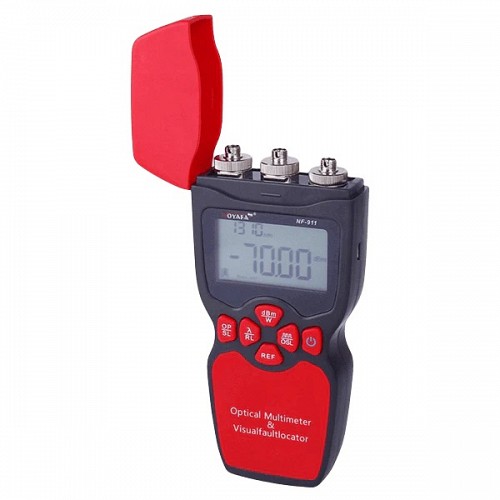

Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C

Order Code: 26276
Stock Level: Only 2 pieces left
Price: €115.00
  • Measurement of the power of the optical sender (dBm and W).
  • Insertion loss test of optical devices.
  • Light source function.
  • Check fiber breakage, winding,ect.
  • New REF user-defined.
  • FC/SC/ST general-purpose interface.
  • Wavelength: 1310/1490/1550/ 1625nm (power meter).
  • Wavelength:1310 / 1550nm( light source).
  • Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
  • 100% Affordable. Manufactured in China and a lot cheaper than competitor products with similar quality.

Power meter

  • Power detecting range(dBm): -50 ~ +26
  • Wavelenth (nm): 800-1700
  • Probe: InGaAs
  • Detection limit: ∮1.0mm
  • Standard wavelenth: 1310, 1490, 1550, 1625nm
  • Display resolution: 0.01dBm

Light source

  • Modulation frequencies: CW/270Hz,1Hz,2Hz
  • Standard wavelenth: 1310, 1550nm
  • Emitter type: FP-LD

VFL

  • Emmiting Energy: 5mw/ 10mw/ 20mw/ 30mw selectable
  • Standard wavelenth: 650±10nm
  • Working temp: -20 ~ +70℃
  • Power supply: 1.5V*3pcs
  • Overall dimension: 160x75x32mm
