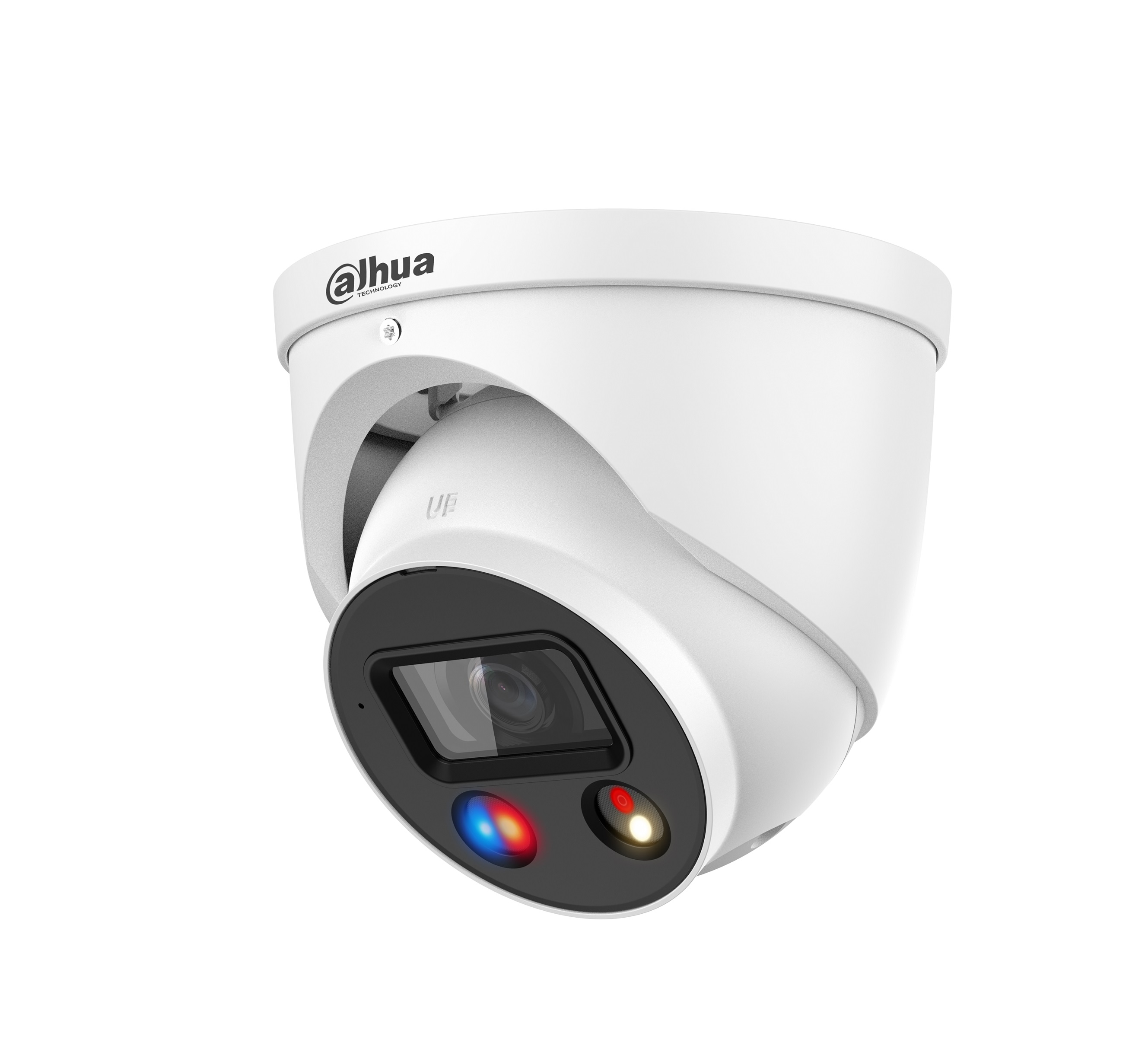

Dahua IP Lite AI WizSense 5.0MP Dome 2.8mm Smart Dual Illumination Active Deterrence Camera HDW3549H-AS-PV-S5

Order Code: 26708

Stock Level: Good

Price: €359.₀₀

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 5 MP (2960 ×1668) @20 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA (what is AI SSA? read the PDF file in the documents section )and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms

Camera

Image Sensor : 1/2.7" CMOS
Max. Resolution : 2960 (H) × 1668 (V)
ROM : 256 MB
RAM : 1 GB
Scanning System :Progressive
Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
Min. Illumination : 0.003 lux@F1.0 (Color, 30 IRE) / 0.0003 lux@F1.0 (B/W, 30 IRE) / 0 lux (illuminator on)
S/N Ratio : ﹥ 56 dB
Illumination Distance : Up to 30 m (IR) / Up to 30 m (warm light)
Illuminator On/Off Control : Auto; manual
Illuminator Number : 1 (IR LED) 1 (warm light)

Lens

Intelligent

IVS (Perimeter Protection) : Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 4.0 : Less false alarm, longer detection distance
Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AcuPick : Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA : Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions
Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec : Smart H.265+; Smart H.264+
AI Coding : AI H.265 (Compression rate ≥25%) / AI H.264 (Compression rate ≥25%)
Video Frame Rate : Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) / Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) / Third stream: 1920 × 1080@(1 fps–25/30 fps)
Stream Capability : 3 streams
Resolution : 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048 × 1536); 1080p (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240)
Bit Rate Control : CBR/VBR/ABR
Video Bit Rate : H.264: 32kbps–8192 kbps / H.265:12kbps–8192 kbps
Day/Night : Auto (ICR)/Color/B/W
BLC : Yes
HLC ; Yes
WDR : 120 dB
Scene Self-adaptation : Yes
White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control : Auto; manual
Noise Reduction : 3D NR
Motion Detection : OFF/ON (4 areas)
Region of Interest (RoI) : Yes (4 areas)
Smart Illumination : Yes
Defog : Yes
Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror : Yes
Privacy Masking : 4 areas

Audio

Alarm

Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Network : RJ-45 (10/100 Base-T)
SDK and API : Yes
Cyber Security : Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability : ONVIF (Profile S;Profile G;Profile T); CGI
User/Host : 20 (Total bandwidth: 72 M)
Storage : FTP; SFTP; Micro SD card (Support max. 256 GB); NAS
Browser : IE: IE8/9/11 / Chrome / Firefox
Management Software : Smart PSS; DSS; DMSS
Mobile Phone : iOS; Android

Certification

Port

Power

Power Supply : 12 VDC/PoE (802.3af)
Power Consumption : Basic: 3.7 W (12 VDC); 4.8 W (PoE) / Max. (pulling stream+warning light+speaker+warm light on): 8.3 W (DC12 V) 8.8 W (POE)

Environment
