Off-grid security made simple

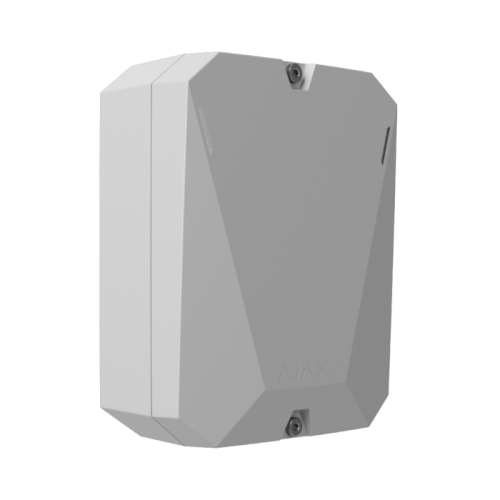

Hub BP Jeweller is an innovative security control panel designed to secure properties without a constant power supply. It's ideal for protecting vacant houses, construction sites, and temporarily unused offices. Unlike other control panels, Hub BP is powered by internal and external batteries, ensuring long-term autonomous operation. Hub supports event photo verification and features dual SIM connectivity, guaranteeing reliable communication. Thanks to its battery power saver feature, the device optimizes battery usage, providing continuous protection for extended periods.
Capacity
- Ajax devices
- up to 100
- Specifically, up to 10 sirens or keypads with a built-in siren and up to 5 range extenders.
Ajax NVRs
Ajax cameras
- up to 224 via Ajax NVRs and up to 492 standalone
Third-party IP cameras
- up to 10 when using RTSP via SDK
- up to 224 when using ONVIF via Ajax NVRs
Users
- up to 50
- Any number of admin users within the hub limit.
- PRO accounts for installers.
- PRO accounts for installation and monitoring companies.
- Access management for users.
Automation scenarios
- up to 32 : By alarm.By schedule./By arming/disarming./By temperature, humidity, CO2 concentration./By pressing Button./By touching LightSwitch.
Security groups
Rooms
Event log
- up to 1,000 events
- Events are saved on the non-volatile onboard flash memory.
Wireless communication
- Jeweller communication technology
- Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
- 866.0–866.5 MHz
- 868.0–868.6 MHz
- 868.7–869.2 MHz
Maximum effective radiated power (ERP)
- up to 25 mW
- Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
Radio communication range
- up to 2,000 m
- Between a hub and connected devices (in an open space). The maximum range depends on the connected device.
Polling interval
- from 12 s to 300 s
- Adjusted by a PRO or user with admin rights in Ajax apps.
Encrypted communication
- All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
- To prevent radio interference and jamming.
Wings communication technology
- Proprietary wireless communication technology to transmit photos.
Communication channels
Cellular
Cellular bands
- 2G
- GSM900/DCS1800 (B3/B8)
- 3G
- WCDMA 850/900/2100 (B1/B5/B8)
- 4G (LTE)
- FDD B1/B3/B5/B7/B8/B20
Automatic switching between communication channels
- between SIM cards — up to 4 minutes
Communication channels prioritization
- Micro SIM slot 1
- Micro SIM slot 2
Auto APN
- The APN auto select feature allows setting access point automatically based on the installed SIM card.
External antenna connectors
- Jeweller
- Wings
- 4G (LTE)
- The system will notify of the damaged antenna.
Ajax ExternalAntenna is sold separately.
Alarm transmission system categories
Control panel operation method
Signaling security
- S2
- Substitution security.
Information security
Notifications
- Push notifications
- SMS
- Calls
- Learn more
- Event types
- Alarms
- Malfunctions
- Security state change
- System events
- Non-security alerts
- Automation devices
- Notification types are configured individually for each user. Notifications can be customized for A–D schemes according to EN 50131 requirements.
Photo verification
- Photo verification types
- Photo by alarm
- Photo by scenario
- Photo on demand
- Photo by schedule
The Photo by Schedule feature is available for hubs with OS Malevich 2.19 firmware version or later.
Photo delivery time
Photo resolution
Depends on the detector.
Number of photos in a series
Monitoring
Supported protocols
- SIA DC-09 (SIA-DCS)
- SurGard (Contact ID)
- ADEMCO 685
- Other proprietary protocols
Event types
- System alarms and events
- Panic button coordinates
- Photo verification
Power supply
External
- 4.2–16 V⎓, up to 2 A
- Zinc-air battery or external power source.
Internal
- 4.2–16 V⎓, up to 2 A
- Rechargeable lead-acid and LiFePO4 batteries (not included). Non-rechargeable LTC batteries (not included).
Device operating DC voltage range
Autonomous operation
On external battery in full function mode
- up to 18 months
- On a 12 V⎓, 600 Ah, zinc-air non-rechargeable external battery (not included).
On external battery in Battery saving mode
- more than 5 years
- On a 12 V⎓, 600 Ah, zinc-air non-rechargeable external battery (not included).
On internal battery in a Battery saving mode
- up to 17 months
- On a 7.2 V⎓, 95 Ah, LTC non-rechargeable Internal battery NB (7.2V/95Ah) (not included).
- up to 4 months
- On a 6.4 V⎓, 27 Ah, LiFePO4 rechargeable Internal battery RB (6.4V/27Ah) (not included).
- up to 2 months
- On a 12 V⎓, 7 Ah, lead-acid rechargeable internal battery (not included).
Sabotage protection
- Tamper alarm
- Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing
Frequency hopping
- The hub sends notifications to all users and the security company of jamming or losing connection with the devices.
Jamming alert
- Hub BP Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds.
Certifications : Grade2
Enclosure
Dimensions : 196 × 238 × 100 mm
Weight : 1,010 g
Operating temperature range : from −10 °C to +40 °C
Operating humidity : up to 75%
Protection class : IP40
