MercuryMercury CAT6 Outdoor Cable CU UTP 100m 808.040UK

Order Code: 19328

Type: Cat6Cable Type: UTPConductor: Pure CopperEnvironment: OutdoorLength: 100mColour: Black

STOCK LEVEL: High



€80.00



- +

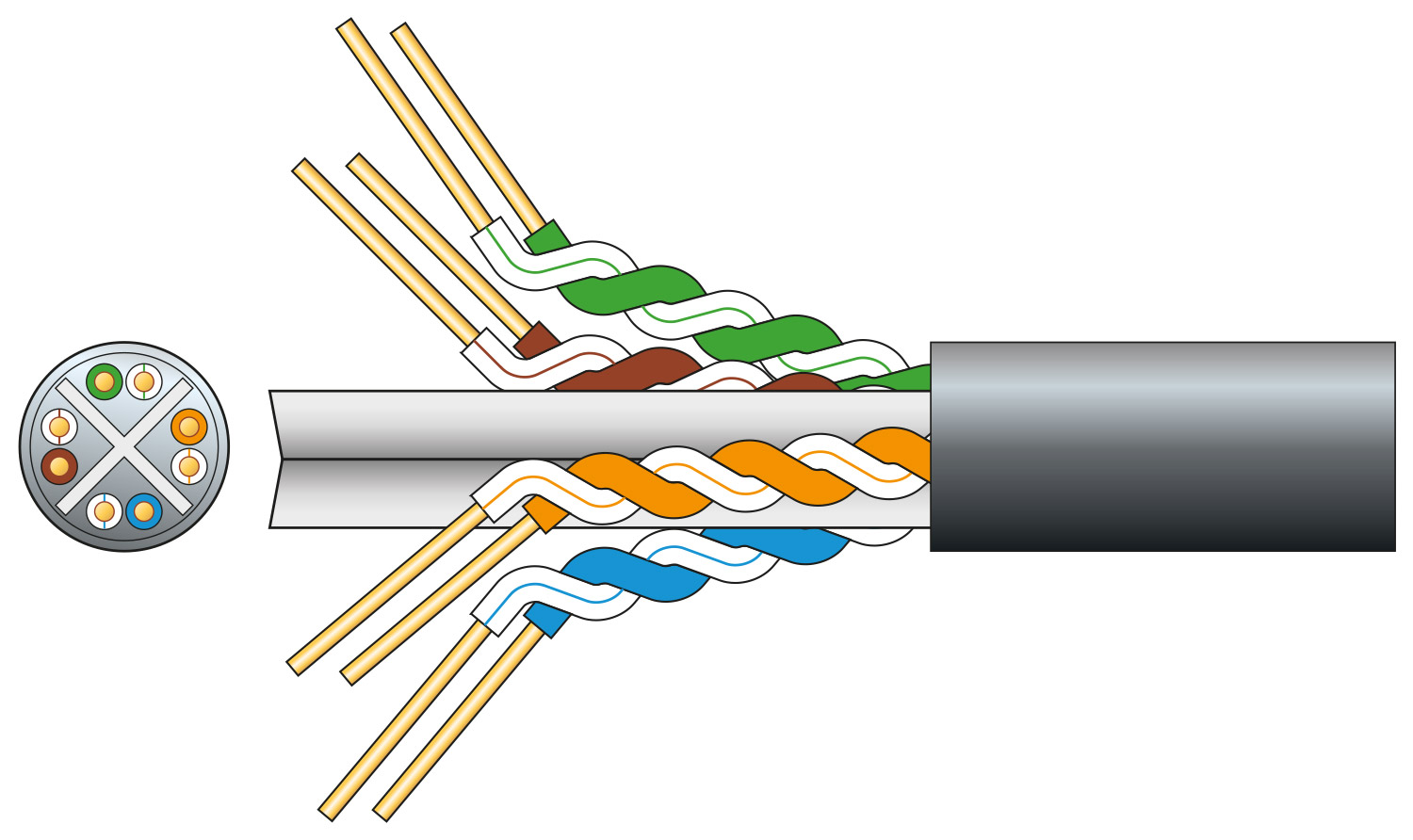

Cat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.

  • Oxygen free solid copper conductor
  • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations

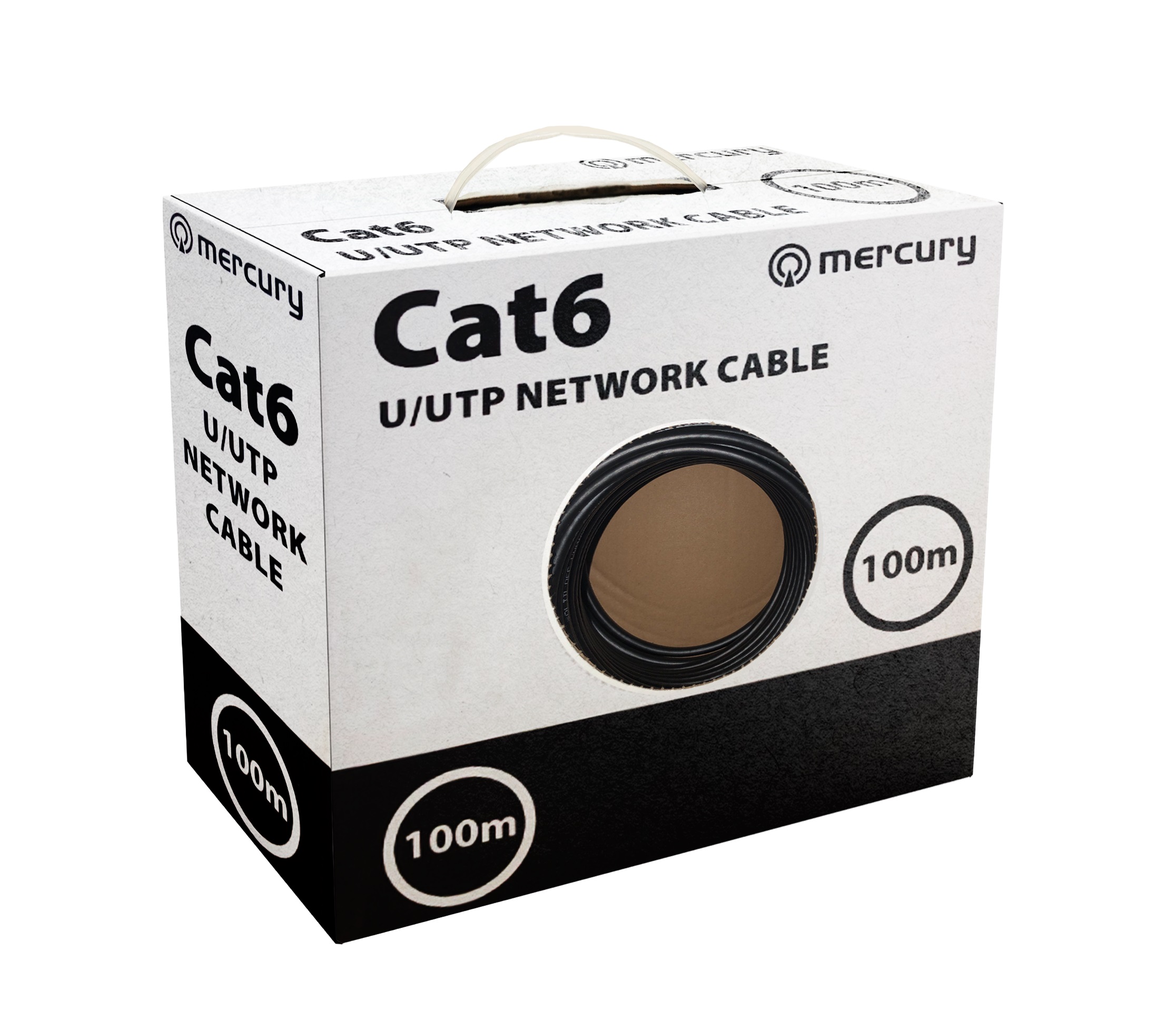

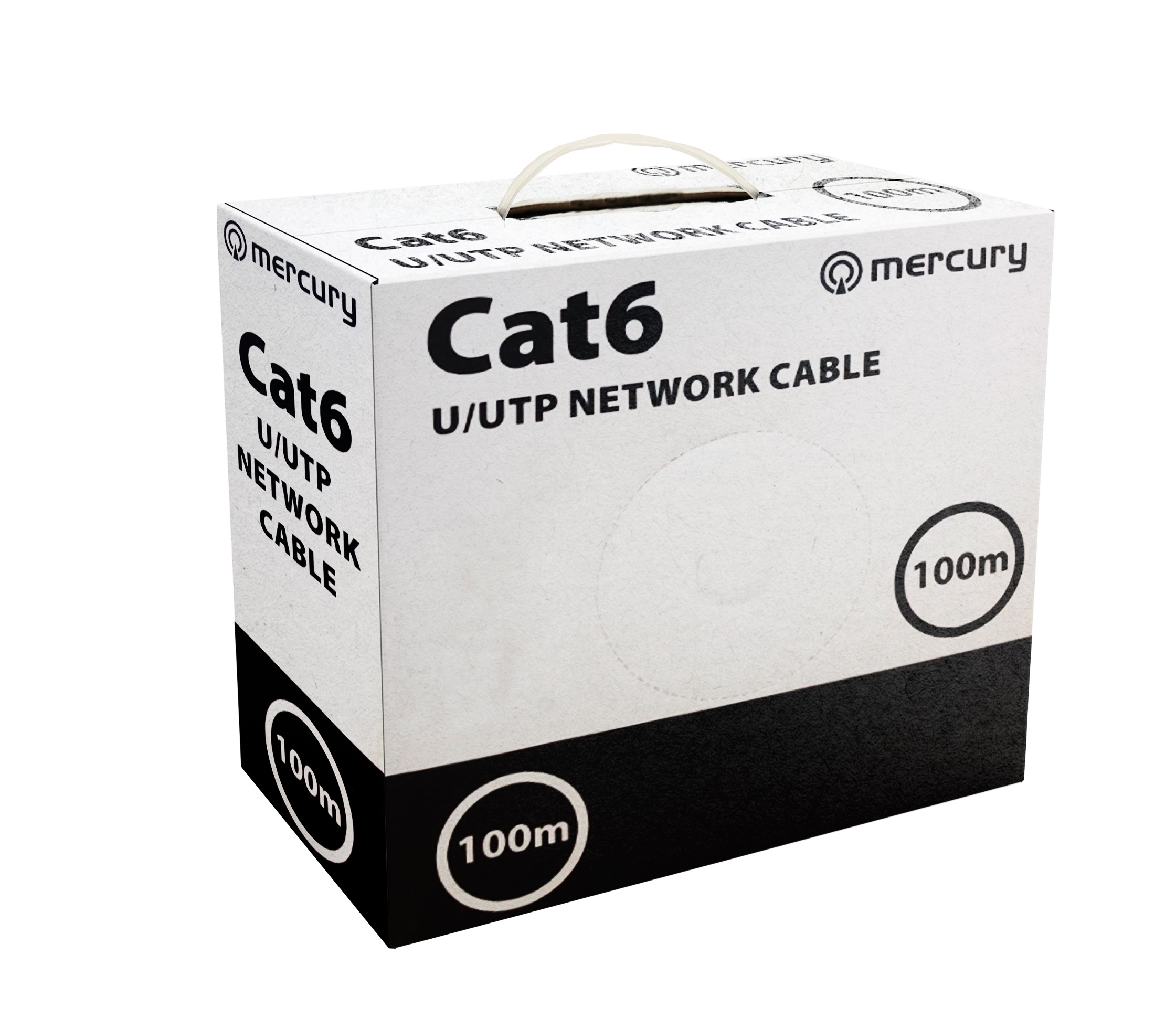

  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • Conductor: Solid OFC
  • Strands: 8 x 0.53mmØ ±2%
  • Cable diameter: 6.0±0.05mm
  • Insulation: HDPE 0.93±0.05mm
  • Sheath: LDPE 0.55±0.05mm thickness
  • DC resistance @ 20°C: <9.38 ohms/100m
  • Impedance (1 to 250MHz): 100±15 ohms
  • Return loss >20.1dB @ 100MHz
  • Attenuation >19.8dB @ 100MHz
  • NEXT >44.3dB @ 100MHz
  • Phase delay >537.60ns @ 100MHz
  • PSNEXT >42.3dB @ 100MHz
  • ELFEXT >27.8dB @ 100MHz
  • PSELFEXT >24.8dB @ 100MHz
  • Cable colour: Black
