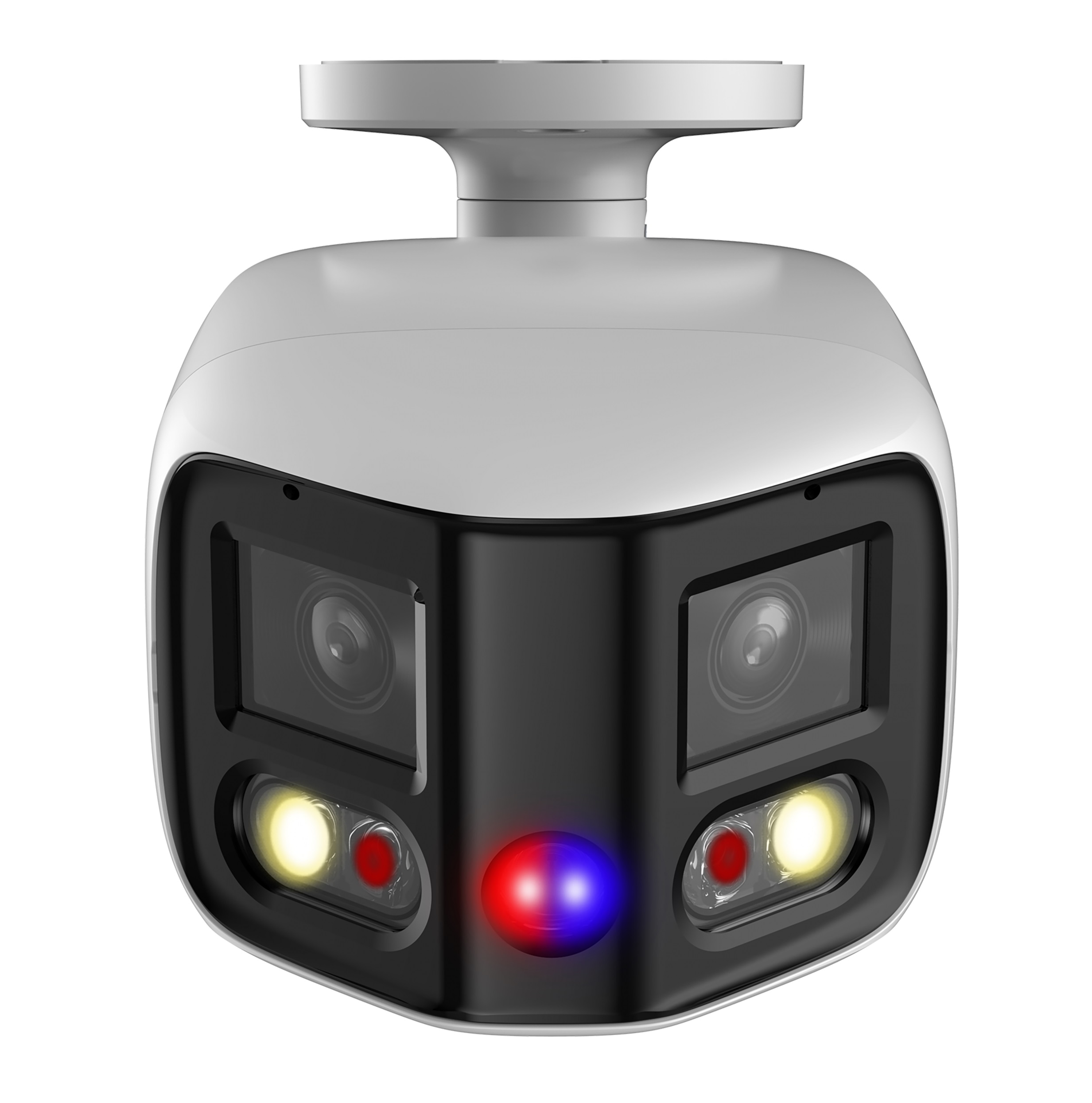

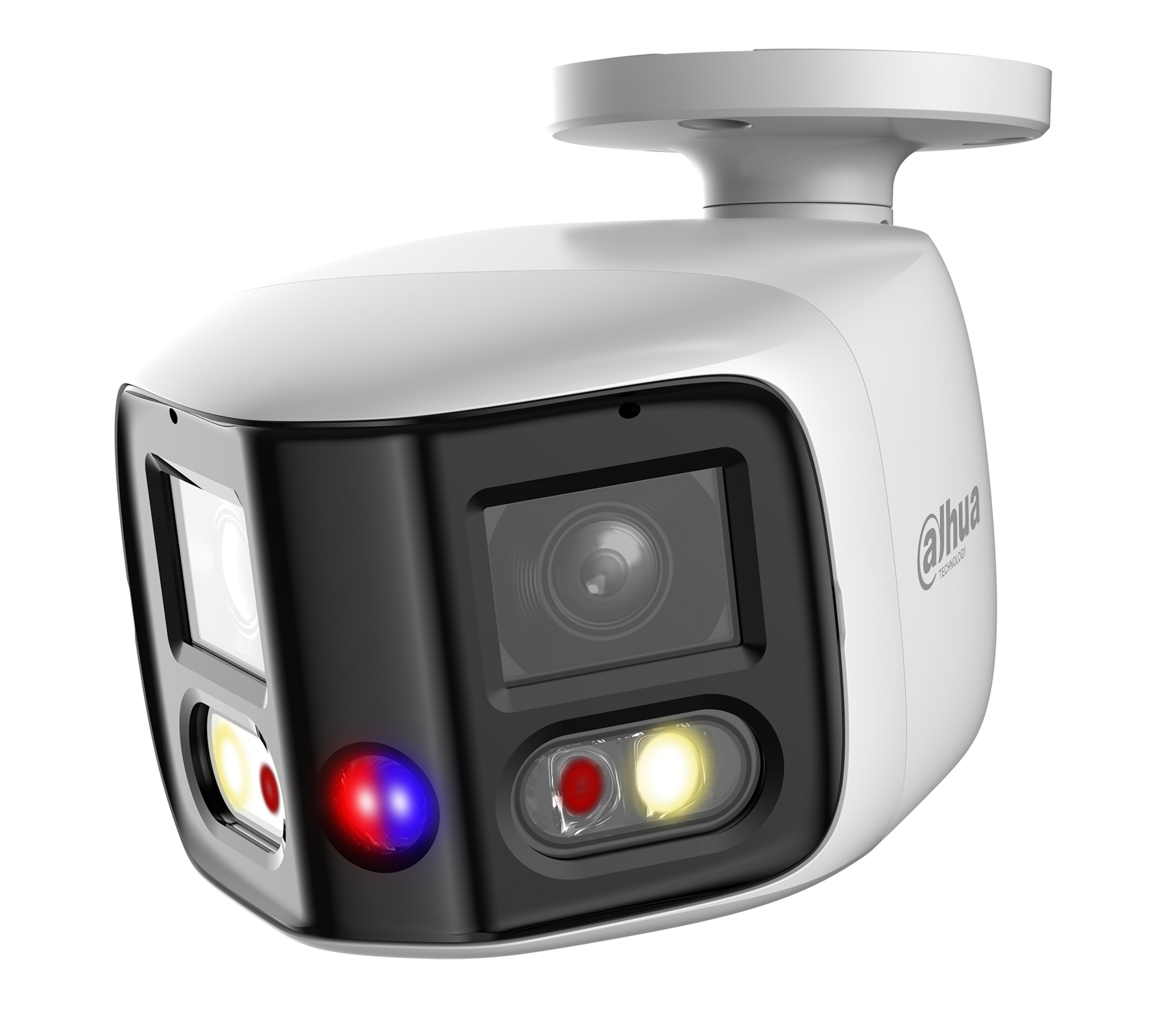

Dahua IP Lite AI 8.0MP Bullet 2.8mm IPC-PFW3849S-A180-AS-PV

Order Code: 25423

Stock Level: Good

Price: €502.₀₀

Outputs 180° wide angle splicing image
Outputs max. 8 MP (4096 × 1860)@20 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk
12 VDC/PoE power supply, easy for installation
IP67 protection
Sound and light alarm (red and blue lights)
EPTZ: Enlarge and track the targets of intelligent alarms
SMD 4.0
One-tap arming/disarming through alarm input

Camera

Image Sensor : Dual 1/2.7" CMOS
Max. Resolution : 4096 (H) × 1860 (V)
ROM : 128 MB
RAM : 1 GB
Scanning System : Progressive
Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
Min. Illumination : 0.005 lux@F1.4 (Color, 30 IRE) / 0.0005 lux@F1.4 (B/W, 30 IRE) / 0 lux (Illuminator on)
S/N Ratio : >56 dB
Illumination Distance : Up to 25 m (IR LED) / Up to 20 m (Warm light)
Illuminator On/Off Control : Auto; Manual
Illuminator Number : 2 (IR LED); 2 (Warm light)

Lens

Intelligence

IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD : SMD 4.0
Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.
Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
EPTZ : Enlarge and track the targets of intelligent alarms

Video

Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec : Smart H.265+ / Smart H.264+
AI Coding : AI H.265 / AI H.264
Video Frame Rate : Main stream: 4096 × 1860@(1–20 fps ) / Sub stream: 1200 × 530@(1–20 fps) / Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability : 3 streams
Resolution : 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432
Bit Rate Control : CBR/VBR
Video Bit Rate : H.264: 6 kbps –16384 kbps / H.265: 6 kbps –16384 kbps
Day/Night : Auto(ICR)/Color/B/W
BLC : Yes
HLC : Yes
WDR : 120 dB
Scene Self-adaptation (SSA) : Yes
White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control : Auto
Noise Reduction : 3D NR
Motion Detection : OFF/ON (4 areas, rectangular)
Region of Interest (RoI) : Yes (4 areas)
Privacy Masking : 4 areas
Defog : Yes

Audio

Alarm

Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception

Network

Network Port : RJ-45 (10/100 Base-T)
SDK and API : Yes
Cyber Security : Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI
User/Host : 20 (Total bandwidth: 64 M)
Storage : FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser : IE: IE 8 and later
Chrome : Firefox
Management Software : Smart PSS Lite; DSS; DMSS
Mobile Client : iOS; Android

Certification

Certifications : CE-LVD: EN62368-1 / CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Power

Power Supply : 12 VDC (±30%); PoE (802.3af)
Power Consumption : Basic: 3.4 W (12 VDC); 3.8 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 9 W (12 VDC); 10.3 W (PoE)

Environment
