Hypontech

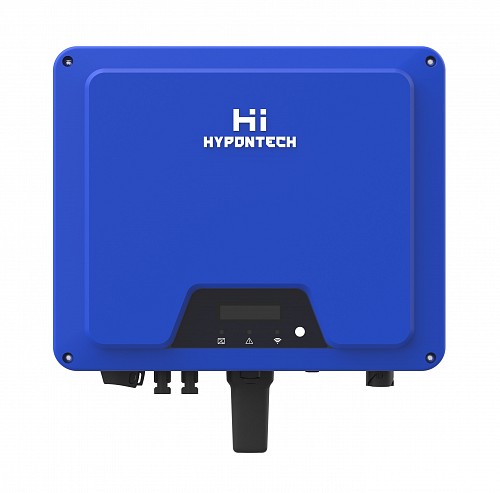

HYPONTECH OnGrid Inverter HPT-10000 Three Phase 10KW

Order Code: 25877


  • Inverter Type: OnGrid
  • Power Rating: 10KW
  • Phase: 3
  • Solar Panel input: 15000W
  • Number of MPPT: 2
  • IP Rating: IP65
Stock Level: Good

 –

Price: €1299.00

HPT-10000 Inverter 3 Phase 10KW

  • Peak Efficiency 98.5%
  • Max DC Overload 50%
  • Aluminum Alloy casting
  • MES-FCT-CRM  Ifrastructure
  • Easy Installation and Service

HPT - 10000

​PV Input

  • Max PV Power (W) : 15000
  • Max Input Voltage (V) : 1100
  • Start Up Voltage (V) : 180 V
  • Rated Input Voltage (V) : 620
  • MPPT Voltage Range (V) : 150-1000
  • Max Input Current (A) : 16
  • Max Short Circuit Current (A) : 20
  • No. of MPPTs : 2
  • No. of Strings Per MPPT : 1

AC Output

  • Rated Power (W) : 10000
  • Max. Apparent Power (VA) : 11000
  • Rated Grid Volatege (Vac) : 380/400
  • Rated Grid Frequency (Hz) : 50/60
  • Max Output current (A) : 15.9
  • Power Factor :  0.8 ind - 0.8 cap
  • THDi @Rated Power <3%
  • Grid Connection : 3L-N-PE

Efficiency

  • Max  Efficiency : 98.5%
  • Euro Efficiency: 97.8%
  • MPPT Efficiency: 99.9%

Protection Function

  • Anti Islanding Proctection : Intergrated
  • PV String Onput Reverse Polarity Protection : Intergrated
  • Insulation Resistance Detection :  Intergrated
  • Resudula Current Monitoring Unit :  Intergrated
  • Output Over Current Protection :  Intergrated
  • Output Short Circuit Protection : Intergrated
  • Over Voltage Protection :  Intergrated
  • Surge Protection :  DC Type II, SC Type II

General Data

  • Dimensions (W*H*D)(mm) : 425*351*160
  • Weght (Kg): 15
  • Noise Emission (Typical) dB(A) : 20
  • User Interface : LCD&LED
  • PV connection Type : MC4
  • AC Conection Type : Plug in connection
  • Communication : RS485/WIFI/4G/LAN
  • Colling Method : Natural Cooling
  • Operating Ambient Temperature (C) : -25 to +60
  • Relative Humidity (%) : 0 -100
  • Max Operating Altitude (m) : 2000
  • Protection Class : IP65
  • Climatic Category (IEC 60721-3-4) :  4K4H
  • Topology : Tranformerless
  • Night Consumption (W) : <1
Datasheet
