Compatibility
- Hubs : Hub Plus / Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus / Hub Hybrid (2G) / Hub Hybrid (4G)
- Radio signal range extenders : ReX / ReX 2
Communication
- Two-way communication
- Protection against device spoofing
- Block encryption featuring a floating key
- Instant notifications
- Remote configuration via Ajax apps
- Radio frequency bands : 866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz
- Maximum effective radiated power (ERP) : up to 20 mW (Automatic power adjustment to reduce power consumption and the effect of radio interference)
- Radio signal modulation : GFSK
- Radio communication range : up to 1,100 m (Between device and hub or radio signal range extender without obstacles)
- Radio signal encryption
- Frequency hopping : Prevents radio interference and jamming
Operating components

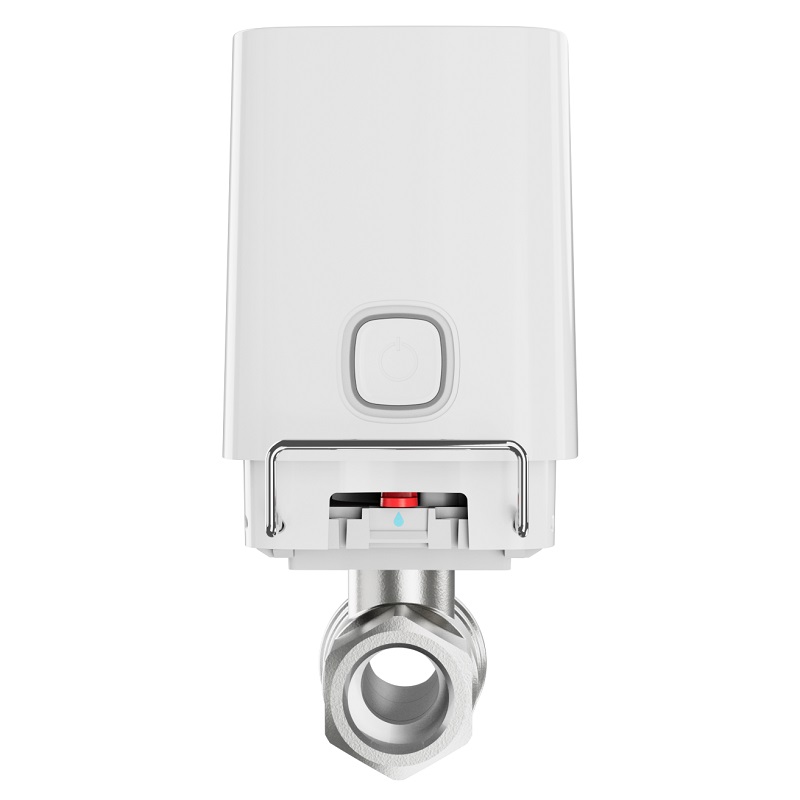

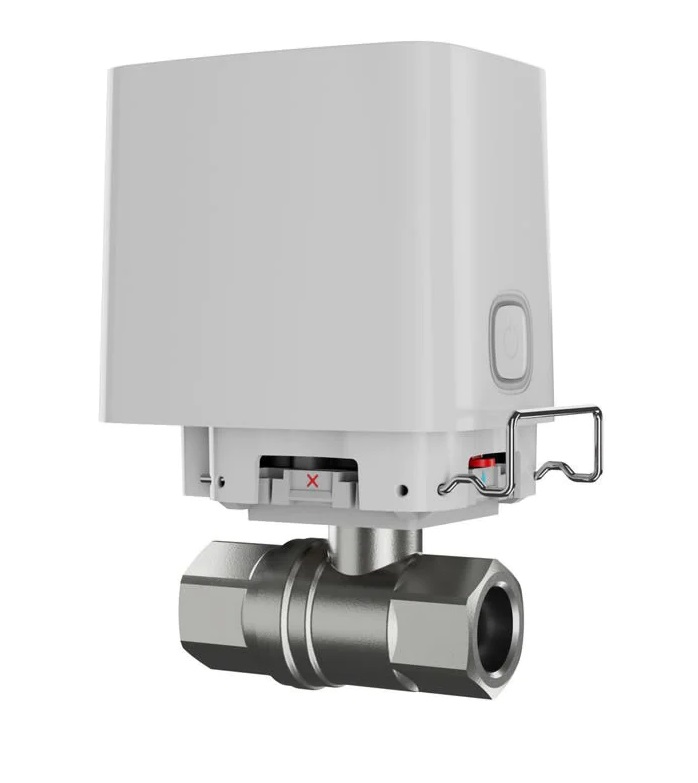

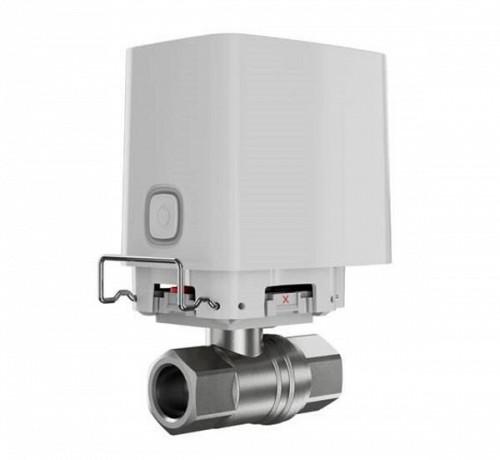

- Shutoff valve : 1" (DN 25), Bonomi Industries shutoff valve included in complete set
- Electric actuator : Opens or closes the valve
- Mounting platform : To install an electric actuator on a shutoff valve
- Mounting lockers : To fix an electric actuator on a shutoff valve.
- The complete set includes two options: : standard (pre-installed) / anti-sabotage
Water shut-off shutoff valve
- Fields of application : water supply and heating systems
- Operating fluid : hot and cold water, non-aggressive liquids
- Material : brass
- Connection type and thread : F/F threaded
- Thread size: : 1" (DN 25, 25 mm)
- Operating liquids' temperature range : from +5°C to +120°C
- Mounting platform : to mount an electric actuator on a shutoff valve
Water shut-off electric actuator
- Torque : up to 8.5 N•m
- Operating pressure : up to 10 bars
- Shut-off speed : up to 5 seconds (The value may increase if the valve is clogged or stuck)
- Remote control : control and configuration in Ajax apps
- Apps provide all information about the device: current valve state (open/closed), statuses of battery charge, external power supply, and communication with a hub
- Manual control : the control button on the electric actuator enclosure
Additional features
- Installation : does not require tools and enclosure disassembling
- 4 possible mounting positions of electric actuator towards the valve
- anti-sabotage locker to complicate unauthorized dismount of an electric actuator
- The design allows maintenance, and repair in hard-to-reach places: pipe tunnels, technical boxes, walls, etc. It is possible to replace the actuator unit without dismantling the shutoff valve.
- LED indication : The LED placed under an Ajax logo on enclosure and reports the electric actuator states
- Automation scenarios : alarm reactions / security mode change reactions / scheduled actions / temperature scenarios / humidity scenarios / CO2 level scenarios / by pressing Button / by pressing LightSwitch
- Stuck prevention : the scheduled scenario automatically opens/closes a shutoff valve. Configured in Ajax apps. The recommended periodicity is once a week.
- Overheating notification : The notification is sent to Ajax apps when the device temperature tops +60°C and when it returns to normal
Anti-sabotage protection
- Protection against spoofing : device authentication
- Communication failure detection : in 36 (The time depends on the Jeweller/Fibra settings)
- Tampering alarm : Notifies about attempts to detach the enclosure from the mount
- Mounting lockers for fastening (two options) :
- Standard locker (pre-installed) — fixes an electric actuator on a shutoff valve Removes easily for a quick access to the valve
- Anti-sabotage locker — used instead of a standard locker. Securely fixes an electric actuator on the valve to complicate an unauthorized dismount
Power supply
- Pre-installed batteries : 4 × CR123A battery (Up to 3 years of battery life)
- Optional external power supply : 7.5–14 V⎓, up to 1.8 A
- The Recommended voltage of the power supply is 9 or 12 V⎓
- The batteries serve as a backup when external power supply is connected
Enclosure
- Dimensions : 104.5 × 159 × 70 mm 1" (DN 25) shutoff valve with an electric actuator
- Electric actuator : 90 × 41 mm 1" (DN 25) shutoff valve
- Operating temperature range : from 0°C to +60°C
- Operating humidity : up to 95%
- Weight : 800 g
